FKF-K SERIES
HIGH EFFICIENCY ACTIVATED CARBON BOX
Features:
- High-quality columnar carbon: High-quality columnar activated carbon, strong adsorption, fast deodorization, no ash, no secondary pollution, removal rate≥ 90%.
- V-Pack Carbon plate structure: The W-shaped honeycomb mesh carbon board has more uniform filing and more thorough purification: the wind resistance is small.
- Well-developed pore structure: The microcrystalline carbon material has a large specific surface area. The unfolded surface area of the micropores in1g of carbon can reach 800-3000m³, and the adsorption capacity is large.
- Ergonomic design: Modular combination, pull-out activated carbon board, independent transparent plastic bag packaging, easy installation, and maintenance.

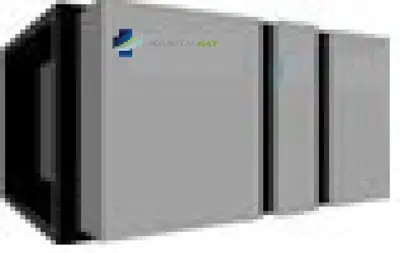

Free modular combination:

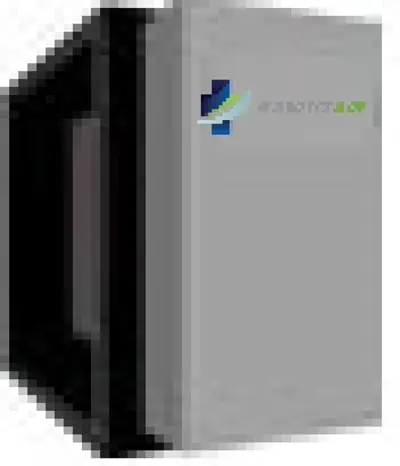

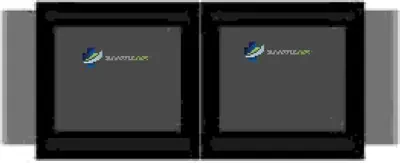

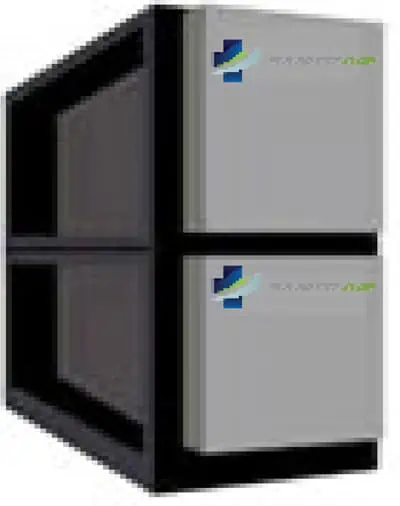

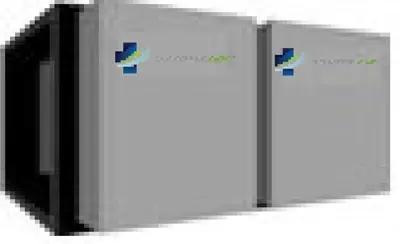

| Standard Module | Combination of right and left | Combination of Series | FKE+FUV+FKF Combination | Combination of the up & down |
|---|---|---|---|---|
 |
 |
 |
 |
 |
| MODEL | FKF-06K | FKF-08K | FKF-12K | FKF-15K | FKF-20K | FKF-23K |
|---|---|---|---|---|---|---|
| Shape of carbon model | Activated Carbon plate type | |||||
| Odor removal efficiency | ≥90% | |||||
| Processed Air Volume (m³/h) | 4 000 (1100l/s) |
6 000 (1305l/s) |
8 000 (2220l/s) |
9 400 (2610l/s) |
13 000 (3610l/s) |
14 100 (3915l/s) |
| Equipment pressure drop (Pa) | 100 - 300 | |||||
| Dimension (Length x Width x Height) mm | 600 x 749 x 833 | 600 x 800 x 833 | 600 x 1425 x 833 | 600 x 1530 x 833 | 600 x 2105 x 833 | 600 x 2260 x 833 |
| Equipment Weight (kg) | 63 | 69 | 105 | 110 | 148 | 161 |
| Activated carbon content (kg) | 14 | 16 | 28 | 32 | 42 | 48 |
| Maintenance Space (mm) | 1030 | |||||
